1. The choice of indentation line (brew line); 2. The choice of bottom line (bar); 3. Die cutter version of the use of sponge rubber; 4. Indentation knife (beer knife) RBI. First, the choice of carton die-cutting indentation line (brew line): The choice of indentation line (brew line) in carton die-cutting is very important, but many people do not pay much attention to the choice of their specifications. Unsuitable indentation lines often lead to inconspicuous creases or crease bursts. The correct choice method:
a. The thickness of the indentation line (beer line) ≥ the thickness after the flattening of the corrugated board: d≥e.
b. At present, the indentation line (beer line) is still used in foreign countries and is usually referred to as “pointâ€. Each point (P)=0.014in (≈0.36mm).
The height of the indentation line (beer line) = indentation knife (beer knife) height - the thickness of the corrugated board after flat pressing.
Second, carton die cutting in the bottom mold bar (line) choice;
The correct selection method for the bottom mold strip (line) in the carton die cutting: Formula B=(e×2)+d.
Calculation method: First, after measuring the corrugated paper thickness e after flattening, the thickness A of the bottom mold strip (line) can be calculated. For example: a. After the flattened corrugated board thickness is 1mm; b. According to the formula B=(e×2)+d, the width B of the bottom die bar (line) is found, ie (1×2)+1=3 mm. According to the calculation, it is advisable to choose an appropriate size of 1×3.
In general, the selection of the bottom mold bar (line) can use the same or similar specifications according to the existing bottom mold supplier's specification table. There are different widths for the same thickness in each supplier, and there are also specifications for the same width and thickness. Therefore, manufacturers should pay attention when choosing. First understand the supplier's specification sheet, and then find the required specifications. In addition, in actual use, in order to achieve the best indentation effect, it is placed on the ruled bottom mold strip (line), and the width B is reduced by 0.1mm-0.2mm. For example, if a suitable specification is calculated to be 0.4×1.3 mm, for a ruled corrugated cardboard, 0.4×1.2 mm should be used.
Third, the carton die-cutting in the use of die-cutting knife sponge rubber.
1. The correct use of sponge glue: When the sponge glue is placed too close to the indentation knife (beer knife), the compressed sponge rubber will not have any space to expand and contract. Eventually it will cause the cardboard to tear outwards, resulting in non-smoothing of the printing plate and the edge of the paper.
a. Place the standard distance of sponge rubber.
b. In die-cut corrugated board, the optimal placement of sponge glue in the die cutter. Sponge is about 150mm long and is placed on both sides of a beer knife, each 5mm apart.
Fourth, the carton die-cutting, die-cutting knife version of the indentation knife (beer knife) dotting (NICK) points: Drilling is very important for the operator, dotting can not only pull the cardboard in the drag and delivery, but also Can meet the appearance of the use requirements. Therefore, pay attention to the setting of the connection point and try to avoid the glueing position. In general, the corrugated cardboard dotting: b = c (corrugated board thickness) + 0.2mm, a = 1-3mm. The above points are just some of the basic points in die-cutting corrugated boxes. Of course, in actual use, the operator also needs to be flexible in the light of the actual situation and use it better in practice.
Custom logo Bopp security holographic tear tape
Basic specification
Material: BOPP, PET
Thickness: 28,33, 35, 36, 38micron, accept customize
Color: Transparent, silve, gold, yellow, etc. others is available
Width: 0.7-8mm or custom size
Pattern: Over 300 generic patterns or with own logo design
Feature: easy opening, reinforcement and security to your packaging, brand protection
Holo tech: Hidden text, Flip-flop, Micro text, Moore encryption, Nano text, etc
Application: Cigarette, tea, medicine, food, electronics, heath care products, garment, etc.
Packing: 5000, 10000, 12000M for on roll, according to customers requirements.

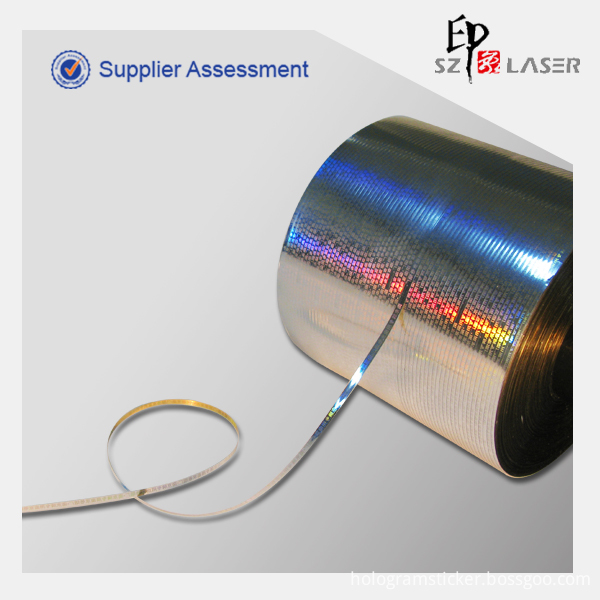

Hologram BOPP Security Tear Tape for Cigarette

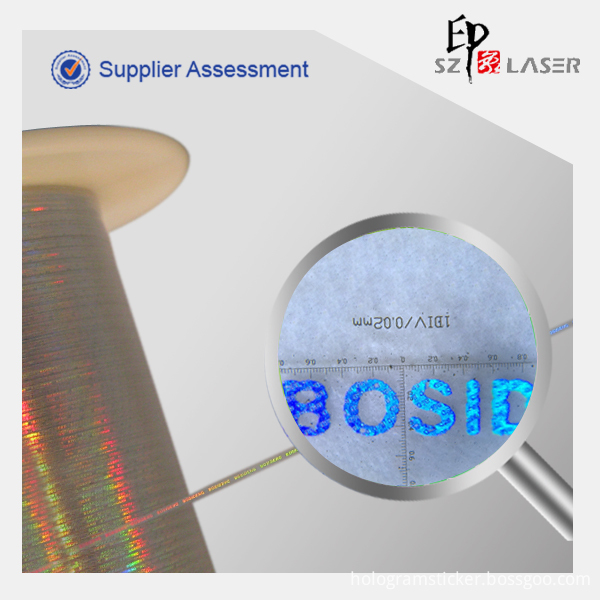

Holographic Tear Tape for Garment
